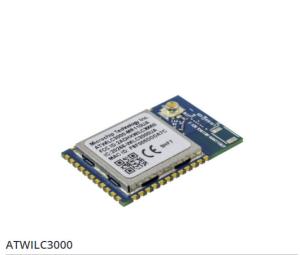

ATWILC3000 IEEE 802.11 b/g/n Link Controller Module with Integrated Bluetooth 5.0
ATWILC3000 is a single chip IEEE 802.11 b/g/n RF/Baseband/MAC link controller and Bluetooth 5. The ATWILC1000 connects to Microchip AVR/SMART MCUs, SMART MPUs, and other processors with minimal resource requirements with simple SPI/SDIO-to-Wi-Fi and UART-to-Bluetooth interfaces.
The ATWILC3000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP.
The ATWILC3000 features fully integrated Power Amplifier, LNA, Switch and Power Management.
Implemented in low-power CMOS technology, the ATWILC3000 offers very low power consumption while simultaneously providing high performance and minimal bill of materials.
The ATWILC3000 utilizes highly optimized 802.11-Bluetooth coexistence protocols.
The only external clock sources needed for the ATWILC3000 is a high-speed crystal or oscillator and a 32.768 kHz clock for sleep operation.
The ATWILC3000 can be used in Linux, RTOS or Baremetal Environments.
The ATWILC3000 uses the same driver as the ATWILC1000.
Matching Accessories's Parametrics:
| Bluetooth Standard | 5 |
| Cloud Partner | FALSE |
| External PA Control | No |
| Family | Wi-Fi Link Controller |
| Frequency Range | 2.412-2.472 MHz |
| Interface | SPI, SDIO, UART |
| Operating Temperature Min. | -40 |
| Operating Temperature Max. | +85C |
| Operating Voltage Min. | 2.5V |
| Operating Voltage Max. | 4.2V |
| Package | Surface Mount Module |
| Pin Count | 37 |
| Power Output | 18.5 dBm (802.11b 11Mbps) |
| Rx Current Consumption | 84mA (802.11n MCS7) |
| Tx Current Consumption | 253mA (802.11n MCS7) |
| RF Module | TRUE |
| RF Transceiver | TRUE |
| Input Sensitivity | -90 (802.11g 6Mbps) |
| Sleep Mode Current Consumption | 1.25uA |
| Type | Wi-Fi Module |
Related products ATWILC1000 :
Overviews:
SmartConnect ATWILC1000 is an IEEE 802.11 b/g/n IoT link controller module.
The ATWILC1000 connects to Microchip AVR/SMART MCUs, SMART MPUs, and other processors with minimal resource requirements with a simple SPI/SDIO-to-Wi-Fi interface.
The ATWILC1000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP.
The ATWILC1000 features a fully integrated Power Amplifier, LNA, Switch and Power Management. The only external clock source needed is a high-speed crystal or oscillator.
The ATWILC1000 can be used in Linux, RTOS or Baremetal Environments.
Features:
ATWILC1000 -IEEE® 802.11 b/g/n Link Controller Module :
IEEE 802.11 b/g/n (1 × 1)
Integrated Power Amplifier (PA) and Transmit/Receive (T/R) switch
Superior sensitivity and range via advanced PHY signal processing
Wi-Fi Direct®, station mode and Soft-AP support
Support for personal and enterprise IEEE 802.11 WEP, WPA and WPA2 security
On-chip memory management engine to reduce host load
SPI and SDIO host interfaces optimized for the Linux OS
Operating temperature range of −40°C to +85°C
Description:
| Category | |
| | RF Transceiver Modules and Modems |
| Mfr | |
| Series | |
| Package | |
| Part Status | |
| RF Family/Standard | |
| Protocol | |
| Modulation | |
| Frequency | |
| Data Rate | |
| Power - Output | |
| Sensitivity | |
| Serial Interfaces | |
| Antenna Type | |
| Utilized IC / Part | |
| Memory Size | |
| Voltage - Supply | |
| Current - Receiving | |
| Current - Transmitting | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Base Product Number | ATWILC1000 |
More part number:
ATWILC1000B-UU-T
ATWILC1000-MR110UB-T
ATWILC1000-MR110UB
ATWILC1000-MR110PB-T
ATWILC1000-MR110PB
ATWILC3000-MR110CA
Alternate Products:
atwilc3000,atwinc1500,atwinc3400,atwilc1000-ic
Images:
Matching Accessories's Parametrics:
Antenna PCB, U.FL
Cloud Partner False
External PA Control No
Family Wi-Fi Link Controller
Frequency Range 2.412-2.472 MHz
Interface SPI, SDIO
Operating Temperature Min. -40C
Operating Temperature Max. +85C
Operating Voltage Min. 2.5V
Operating Voltage Max. 4.2V
Package Surface Mount Module
Pin Count 29
Power Output 18.6 dBm (802.11g 6Mbps)
Rx Current Consumption 85mA (802.11n MCS7)
Tx Current Consumption 186mA (802.11n MCS7)
RF Module True
RF Transceiver True
Input Sensitivity -94 (802.11b 1Mbps)
Sleep Mode Current Consumption 1.25uA
Type Wi-Fi Module
The ATWILC1000 and ATWILC3000 are both available in a chip-level solution.Please feel free to contact us for more. sales@icship.com
